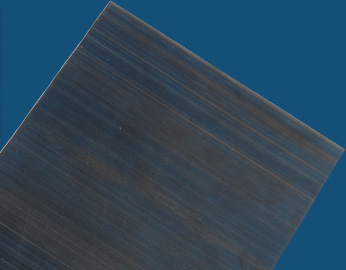

KIL-Creping C75 Blade

MATERIAL:
Hardened and tempered carbon steel. C 75S (AISI 1075) with 0.75% carbon. Hardness approx 48-52 HRC

STANDARD DIMENSIONS:

THICKNESS		WIDTH
mm		mm
1.20		100/114/120/125/130
1.50		100/114/120/125/130

KEY FEATURES:
Continuous length to individual specification
Hardened, tempered, plain ground and straight
Straightened, grinded 90deg on both sides
With one side or both sides grind from 50-85 deg
Straightness tolerance max deviation 0.5 mm over 3000 mm

KIL-Creping C100 Blade

Hardened and tempered carbon steel. C 75S (AISI 1075) with 1.0% carbon. Hardness approx 52-54 HRC
STANDARD DIMENSIONS:

THICKNESS		WIDTH
mm		mm
1.20		100/114/120/125/130
1.50		100/114/120/125/130

KEY FEATURES:
Continuous length to individual specification
Hardened, tempered, plain ground and straight
Straightened, grinded 90deg on both sides
With one side or both sides grind from 50-85 deg
Straightness tolerance max deviation 0.5 mm over 3000 mm.
