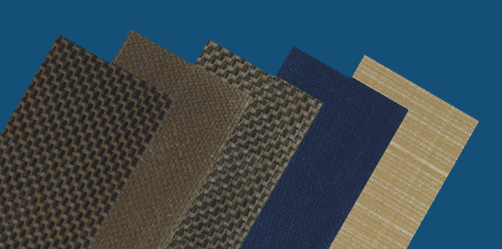

KIL-Carbon Fibre (2 Layer)

MATERIAL:
Superfine glass fibre fabric with epoxy resin-system and 2 layers of carbon fibre. Low coefficient of friction, high wear resistance.
MATERIAL COLOUR: Black
BENDING STREMGTH: Up to 600N/mm2
TEMPERATURE RESITANCE: Up to 185-200 Deg C
CHEMICAL RESISTANCE: Very Good
WATER ABSORPTION: None

STANDARD DIMENSIONS:

THICKNESS		WIDTH
mm	(inch)	mm	(inch)
1.5	(0.090)	50 & 75	(2&3)
1.9	(0.110)	50 & 75	(2&3)

KEY FEATURES:
Continuous length to individual specification
Bevel Angle from 15 deg to 90 deg
Rebate or groove

RIVETING Ready for use with rivets, clips and washers. Profiles suit all holder systems

KEY FEATURES:
Continuous length to individual specification
Hardened, tempered, rolled, even and perfectly straight
Bevel Angle from 18 deg to 90 deg
Rebate or groove

RIVETING Ready for use with rivets, clips and washers. Profiles suit all holder systems

KIL-Carbon Fibre (4 Layer)

MATERIAL:
Superfine glass fibre fabric with epoxy resin-system and 4 layers of carbon fibre. Low coefficient of friction, high wear resistance.

MATERIAL COLOUR: Black
BENDING STREMGTH: Up to 750N/mm2
TEMPERATURE RESITANCE: Up to 185-200 Deg C
CHEMICAL RESISTANCE: Very Good
WATER ABSORPTION: None

STANDARD DIMENSIONS:

THICKNESS		WIDTH
mm	(inch)	mm	(inch)
1.5	(0.090)	50 & 75	(2&3)
1.9	(0.110)	50 & 75	(2&3)

KEY FEATURES:
Continuous length to individual specification
Bevel Angle from 15 deg to 90 deg
Rebate or groove

RIVETING Ready for use with rivets, clips and washers. Profiles suit all holder systems

KIL-Carbon Fibre (6 Layer)

MATERIAL:
Superfine glass fibre fabric with epoxy resin-system and 4 layers of carbon fibre. Low coefficient of friction, high wear resistance.

MATERIAL COLOUR: Black
BENDING STREMGTH Up to 780N/mm2
TEMPERATURE RESITANCE Up to 185-200 Deg C
CHEMICAL RESISTANCE Very Good
WATER ABSORPTION None

STANDARD DIMENSIONS:

THICKNESS		WIDTH
mm	(inch)	mm	(inch)
1.5	(0.090)	50 & 75	(2&3)
1.9	(0.110)	50 & 75	(2&3)

KEY FEATURES:
Continuous length to individual specification
Bevel Angle from 15 deg to 90 deg
Rebate or groove

RIVETING Ready for use with rivets, clips and washers. Profiles suit all holder system

KIL-100% Carbon

MATERIAL:
Carbon Fibre with epoxy resin system. Very low coefficient of friction, extremely good wear resistant

MATERIAL COLOUR: Black
BENDING STREMGTH: Up to 800N/mm2
TEMPERATURE RESITANCE: Up to 185-200 Deg C
CHEMICAL RESISTANCE: Very Good
WATER ABSORPTION: None

STANDARD DIMENSIONS:

THICKNESS		WIDTH
mm	(inch)	mm	(inch)
1.5	(0.090)	50 & 75	(2&3)
1.9	(0.110)	50 & 75	(2&3)

KEY FEATURES:
Continuous length to individual specification
Bevel Angle from 15 deg to 90 deg
Rebate or groove

RIVETING Ready for use with rivets, clips and washers. Profiles suit all holder systems
