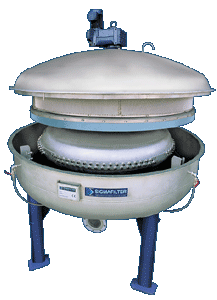

It is called spray filtration equipment. It can be used for fibre scalping or water polishing for shower water thanks to the utilization of multi-layers stainless steel wire (two or three layers). Almost maintenance free operation, it assures good performance with a moderate investment cost.

Double sintered stainless steel wire mounted on rotating drum
Double row of high pressure spraying nozzles are mounted outside the rotating drum, assuring an inward non stop washing
Has 2 outlets: one called coarse fraction (containing fibres) another called fine fraction (containing fillers, ashes and fines)
Central feeding system at a low pressure (0.8 – 1.2 Bar)
Water sprayed against a sintered stainless steel double wire
Rotating drum
Coarse / Fine fraction
Continuous Wire washing

Fillers and Fines separations from Fibres
Stickies removal
Cleaner rejects treatment for the fillers recovering
Filtering of the water coming from Vacuum Pumps
Treatment of waters coming from the stock washing and filtering process
Treatment of waters coming from production processes of dairies, canning industry, oil industry, municipal and industrial waste water treatment plants
