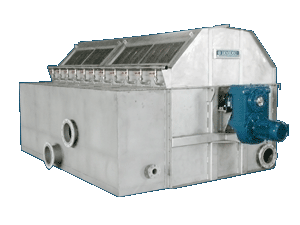

Water filtration and sludge thickening achievable through this equipment. High consistency of sludge achievable (depending on kind of fibre to be thickened it is possible to get up to 15 % of dryness). Low power consumption due the high rate of speed gear reducer directly coupled on the shaft. Special design for disc sealing gasket: it is not necessary to lift the shaft with discs for gasket substitution.

Gravity Filter (No Vacuum)
Discs drum equipped with metallic filtering wire
Level difference between feeding and filtrate chamber provides the necessary hydraulic pressure difference for water / solids separation
The rotation of the Discs provides a friction type action on the solids which has double benefits (easier solid discharge & avoid wire clogging)
The filtering wires are bolted on the frame of the discs
Wire size in the range between 50-1000 microns is available
Innovative mounting and replacing system for discs sealing (patented system)
Operation reliability and low maintenance
Low power consumption

Solids separation from liquids
Fibres separation from fines
Fibres recovery
Raw material recovery in existing overloaded plants
Sludge thickening
Suspensions thickening
Effluents treatment
