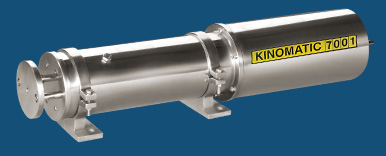

7001

Features

- Moisture proof assembly
- Rugged and proven Reversible Ball Screw
- Minimal maintenance
- All exposed parts are of Stainless Steel
- Moisture proof assembly
- Plug & Use
- Variable speed available as an option

Application

- Dandy Roll
- Couch Roll
- Sheet side high pressure shower wire/felt cleaning
- Inside high pressure shower wire cleaning
- Grooved Roll
- Pick Up Roll

Panel

-  In put Voltage: 220 AC. 1 Ph. 50 / 60 Hz.
- Motor Out put Voltage: 220 AC. 3 Ph.
- Motor speed (Oscillator Speed) is controlled by VFD. Speed can be changed manually or automatically. For Auto mode,    4-20 ma / 0-10 V (feed back) is required from field.
- Oscillation speed ranges from a minimum of 10mm/min. for Kinomatic 1501/ 3001 & 25 mm/min for 7001 / 7002 to a     maximum speed of 150 mm / min.
- Overload setting facility available.
- 2 nos. field inter-lock (potential free contact) & run feedback facility available at Panel.

Technical Specifications

- Dandy Roll
- Couch Roll
- Sheet side high pressure shower wire/felt cleaning
- Inside high pressure shower wire cleaning
- Grooved Roll
- Pick Up Roll
